Features LEUPOLD MARK 4HD SCOPE

Leupold Mark 4HD scope: Professional Performance and Optical Versatility for the Demanding Shooter

The Leupold Mark 4HD riflescope offers professional performance of the Mark 5HD in a lightweight and versatile design.
With five magnifications, a triple-turn turret, ZeroLock, and side focus, it is accurate and reliable at all distances.
Durable and guaranteed with Leupold Gold Ring.

Main features

The design is subjected to the Punisher, a LEUPOLD-exclusive recoil simulation machine, which subjects each model to 5,000 impacts. Each impact has a force three times the recoil of a .308 Win caliber rifle. The models are analyzed after the brutal test, and any necessary design adjustments are made afterward.
Fast-Focus eyepiece system.
Military-grade lens scratch protection system.
Up to almost 600g lighter than other scopes in its segment.
Side-mounted parallax adjustment for quick and easy focusing from any shooting position.
The first focal plane (FFP) reticle allows for distance magnification at all magnification settings. These reticles are ideal for tactical situations, but also provide greater distance estimation accuracy for hunters and sport shooters.
The turret adjustment range is 0.1 MIL, or 1 cm of correction at 100 m. It is equipped with a lever on the magnification ring for almost instantaneous magnification changes.
The 1:4 magnification range offers a wide range of uses for the scope. It provides a wide field of view at low power and precise target identification at high power.
Twilight Max HD twilight management system for perfect color and contrast balance. It eliminates 90% more glare with front light, but allows for longer hunting time due to its performance in low-light conditions. It offers a perfect edge-to-edge image, even at the highest magnification, which is where a riflescope shows its weaknesses, or in this case, its strengths.
It is designed to operate at long distances, thanks to its M5C3 adjustment system, with three turret turns, which allow up to 20 MILs of height correction and 13 MILs of windage adjustment.
34 mm tube, which gives it exceptional robustness and great correction capacity.
Waterproof and fogproof, making it ready to operate in all weather conditions.
Reticle: PR3-MIL (first focal plane)

Technical sheet

2.5-10x42 M5C3 FFP TMR illum.

Power x Objective diameter (mm): 2.5-10x42
Finish: Matte
Tube: 30 mm

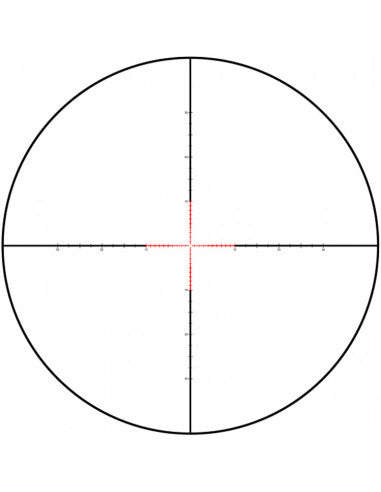

Reticle: TMR
Field of view (m at 100 m): 14 at 2.5x / 3.6 at 10x
Point of impact correction per click (mm at 100 m): 10
Adjustment range (Elevation / Windage): 24.7 MIL / 24.7 MIL
Mounting length (mm): 152
Eye relief (mm): 91-99
Total length (mm): 317
Weight (g): 610
Waterproof / Fogproof: yes
Color: Black
Battery: CR 2032

4.5-18x52 M5C3 Side Focus FFP PR1-MIL illumination

Power x Objective Diameter (mm): 4.5-18x52
Matte finish
Tube: 34mm.
Reticle: PR1-MIL
Field of view (m. to 100m.): 7.695 at 4.5x / 1.75 at 18x
Parallax adjustment (m.): 25
Impact point correction per click (mm at 100m): 10
Adjustment Range (Elevation/Wind): 36 MIL / 28 MIL
Mounting length (mm): 160
Eye relief (mm): 91-99
Total length (mm): 370
Weight (g): 765
Waterproof/Anti-fog: Yes
Color: Black
Battery: CR 2032


6-24x52 M5C3 Side Focus FFP PR3-MIL

Power x Objective Diameter (mm): 6-24x52
Matte finish
Tube: 34mm.
Reticle: PR3-MIL
Field of view (m. at 100m.): 4.37 at 8x / 1.22 at 32x
Parallax adjustment (m.): 23
Impact point correction per click (mm at 100m): 10
Adjustment Range (Elevation/Wind): 36 MIL / 18 MIL
Mounting length (mm): 160
Eye relief (mm): 96-101
Total length (mm): 370
Weight (g): 765
Waterproof/Anti-fog: Yes
Color: Black


8-32x56 M5C3 Side Focus FFP PR3-MIL

Power x Objective Diameter (mm): 8-32x56
Matte finish
Tube: 34mm.
Reticle: PR3-MIL
Field of view (m. at 100m.): 4.37 at 8x / 1.22 at 32x
Parallax adjustment (m.): 25
Impact point correction per click (mm at 100m): 10
Adjustment Range (Elevation/Wind): 20 MIL / 13 MIL
Mounting length (mm): 173
Eye relief (mm): 106-99
Total length (mm): 396
Weight (g): 850
Waterproof/Anti-fog: Yes
Color: Black
