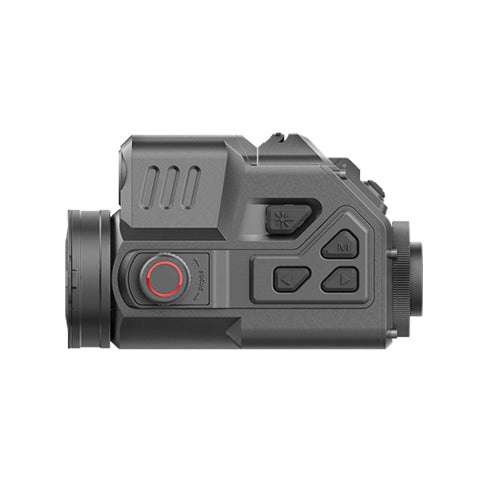

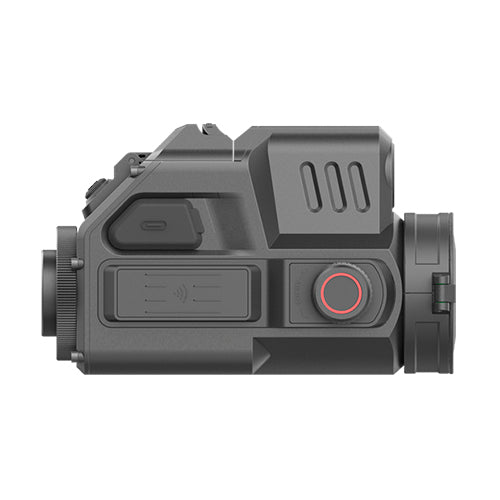

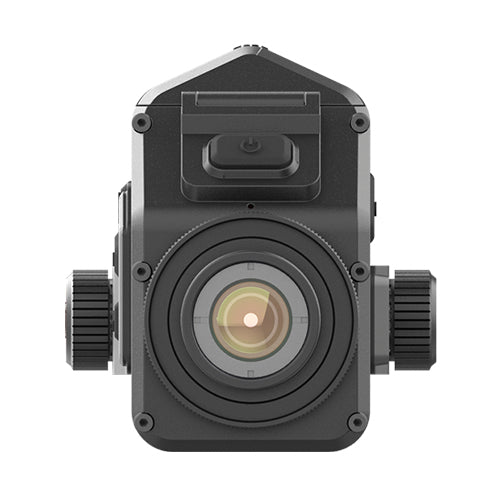

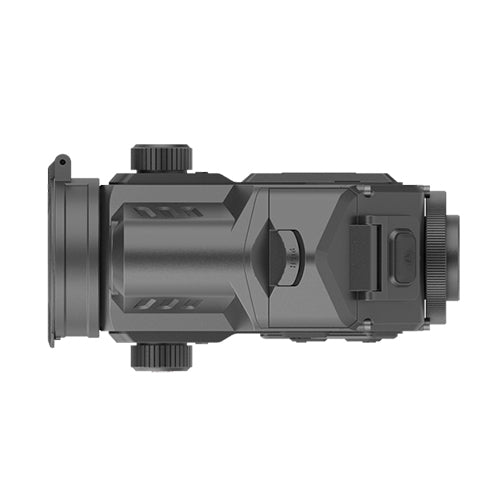

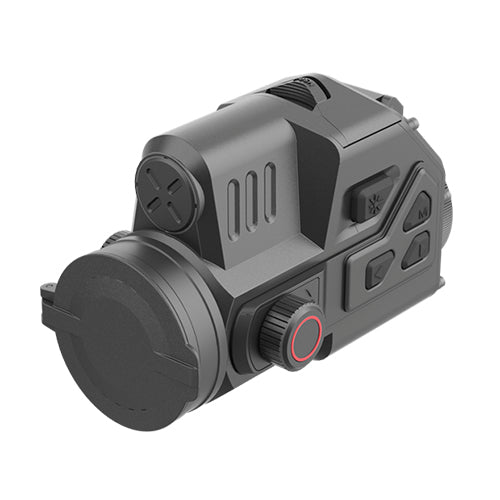

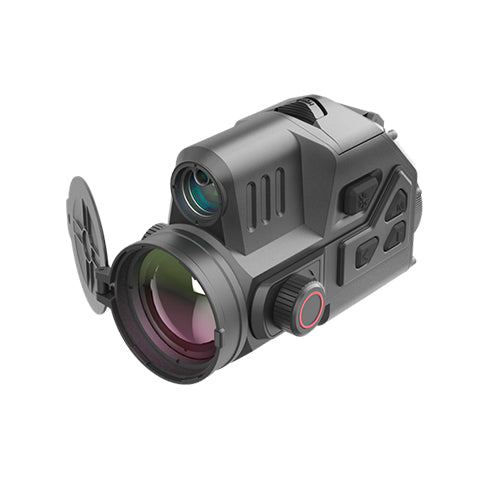

Features GUIDE TB LRF PRO THERMAL CLIP-ON

High-performance Guide TB LRF PRO thermal clip-on with integrated rangefinder, ideal for hunting

The Guide TB LRF Pro has been developed following a complete hardware upgrade and advanced software optimisation, delivering a professional thermal clip-on that combines high performance, portability and intelligent technology. Its design remains lightweight without compromising robustness, thanks to the magnesium alloy housing that improves balance and comfort during long hunting sessions.

The Guide TB LRF Pro series features an integrated laser rangefinder with ranges of up to 1000 or 1500 metres depending on the version, enabling accurate distance measurement in real night hunting scenarios. In addition, the dual 18650 battery system provides extended runtime, making it suitable for prolonged use in the field.

Available in three versions, the Guide TB LRF Pro allows hunters to choose the configuration that best suits their needs. Models equipped with 640×512 or 1280×1024 sensors at 12 μm offer different levels of detail and definition, combined with 35 mm or 50 mm F1.0 lenses and detection ranges of up to 2600 metres. The 0.39-inch Full HD AMOLED display ensures rich, smooth and detailed imaging even in demanding environmental conditions.

Designed as a thermal clip-on, the Guide TB LRF Pro maintains the stability and accuracy required for safe and effective use. It includes photo and video recording with audio, 2.4G and 5G WiFi connectivity, Bluetooth and advanced intelligent features, delivering a modern, complete and efficient user experience.

Main features Guide TB630LP

Uncooled VOx thermal sensor 640×512 at 12 μm
NETD thermal sensitivity of 20 mK
35 mm F1.0 objective lens
Detection range up to 1800 m
Integrated laser rangefinder up to 1000 m
0.39-inch Full HD AMOLED display
Photo and video recording with audio
64 GB internal memory
WiFi 2.4G and 5G and Bluetooth connectivity
Two replaceable 18650 batteries
Approximate runtime of 9 hours
Compact and lightweight construction with IP68 protection

Main features Guide TB650LP

Uncooled VOx thermal sensor 640×512 at 12 μm
NETD thermal sensitivity of 20 mK
50 mm F1.0 objective lens
Detection range up to 2600 m
Integrated laser rangefinder up to 1000 m
0.39-inch Full HD AMOLED display
Photo and video recording with audio
64 GB internal memory
WiFi 2.4G and 5G and Bluetooth connectivity
Two replaceable 18650 batteries
Approximate runtime of 9 hours
Compact and lightweight construction with IP68 protection

Main features Guide TB1250LP

Uncooled VOx thermal sensor 1280×1024 at 12 μm
NETD thermal sensitivity of 18 mK
50 mm F1.0 objective lens
Detection range up to 2600 m
Integrated laser rangefinder up to 1500 m
0.39-inch Full HD AMOLED display
Photo and video recording with audio
256 GB internal memory
WiFi 2.4G and 5G and Bluetooth connectivity
Two replaceable 18650 batteries
Approximate runtime of 6 hours
Compact and lightweight construction with IP68 protection

Legal requirements

To purchase this thermal clip-on, the following legal requirements must be met:
· Hold a valid type D firearms licence.
· Provide full name and identification number during the purchase process.
· Hold the corresponding administrative permit or an exceptional authorisation when using the device mounted on a firearm.

These requirements are mandatory and will be verified prior to order processing.

A professional thermal solution with integrated laser rangefinder, designed to deliver maximum precision and reliability for night hunting.

• Viewing range

  1800 m - 2600 m

The main differences are in the sensor resolution, lens and laser rangefinder range. The TB630LP and TB650LP models feature a 640×512 sensor, while the TB1250LP is equipped with a 1280×1024 sensor. In addition, the TB630LP uses a 35 mm lens, the TB650LP and TB1250LP use a 50 mm lens, and the rangefinder reaches up to 1000 m or 1500 m depending on the version.

The Guide TB LRF Pro thermal clip-on offers a detection range of up to 2600 metres on versions with a 50 mm lens, allowing precise long-range target detection during night hunting.

Yes, the Guide TB LRF Pro has been designed to maintain the required stability and accuracy when used as a thermal clip-on with an integrated laser rangefinder, ensuring safe and effective use during night hunting.

To purchase a Guide TB LRF Pro thermal clip-on in Spain, a valid type D firearms licence is required, along with providing the necessary personal details during the purchase process and holding the corresponding administrative permit or an exceptional authorisation if used mounted on a firearm.
