Features PARD NV007S NIGHT VISION CLIP-ON MONOCULAR

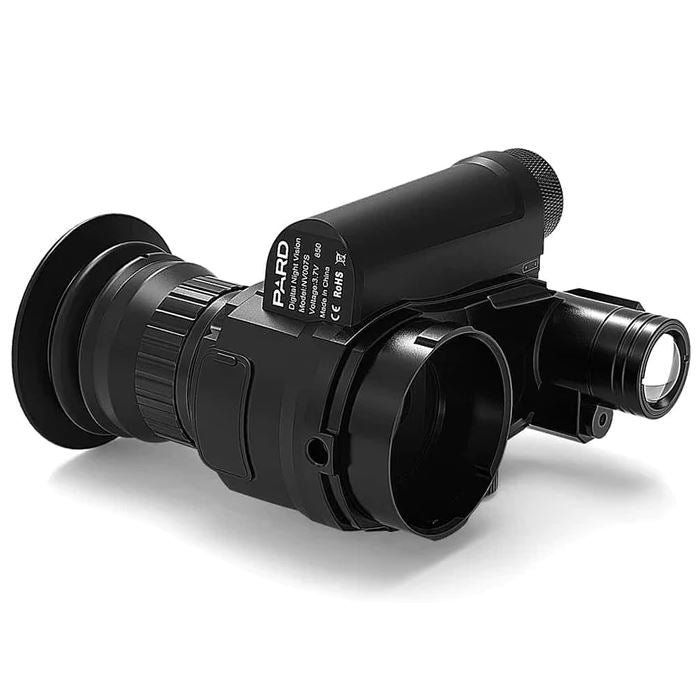

PARD NV007S Night Vision Clip-On Monocular

Clip-on night vision scope.

Quick mount and detach: Quickly convert to night vision. Keep current scope eye relief. Keep range zero.

1920*1080 CMOS Image Sensor: Featuring an ultra-compact design, with a total length of only 96mm. The NV007SP fits perfectly in your pocket and is very easy to carry.

Shorter body length. Compact Design: Lightweight. Ergonomic design. Ergonomic design with lightweight body makes your cheek more relaxed and comfortable during shooting, no need to adjust shooting postures and wearing habits.

350m IR Torch Distance: Three-level IR torch illumination to meet needs in various occasions, easy to detect large or small targets. IR illumination level. Ultra easy steering adjustment.

Eyepiece Adjustment: By adjusting the eyepiece, NV007S makes it possible to get sharp images without glasses by simply turning the eyepiece wheel, meeting all kinds of people's needs. Diopter adjustment: ±5D.

Self-Activated Recording: When the device detects recoil, the entire shooting process will be effortlessly recorded in 20-second intervals and saved to the TF card. Record exciting moments. Easy to use setup steps.

Mute Button: The buttons were designed in soft silicone material to minimize sound to zero, offering a distinct advantage for any outdoor activity. Record exciting moments. Easy to use setup steps.

Optical magnification: Improve aiming visibility. Using the optical magnification of your scope to experience HD images without distortion. Optical zoom up to 14x to improve detail and aiming accuracy.

HDMI output: The HDMI digital interface receives lossless image signals from the device.

6000J Recoil Resistance: The NV007S is recoil proof up to 6000J and is suitable for resisting high caliber rifle recoil with a stable and accurate shooting experience.

Take photos/videos: Capture and record exciting moments while hunting and share high-resolution images and videos with your friends.

Wi-Fi: Built-in Wi-Fi allows you to connect to your phone, PC or tablet as an external viewer and you can instantly transfer images and videos on the go.

TF Card Firmware Update: Firmware updates just got more intuitive, easy and convenient to ensure unmatched performance from your device. You can automatically update the firmware using the TF card at home.

Rechargeable lithium 18650 battery and USB type C: The battery lasts up to 8 hours depending on use. The device can be charged via USB Type-C through a power bank, more convenient to charge and use.

Optional adapter: 45mm | 48mm. Precisely matches the installation size requirements of different scopes.

IP67 Waterproof: Even in extreme weather conditions for outdoor hunting activities, the NV007S still performs great.

Specifications:

Sensor:

· Resolution(px): 1920*1080
· Sensitivity(lux): 0.001 Lux
· Frame rate(fps): 30

Optics:

· Objective Lens: 14.5mm
· Optical magnification: 4x
· Digital zoom: 1x-3.5x
· PIP zoom: 2x
· Continuous digital zoom: 4x-28x
· Field of vision (HxV): 22º/12º/25º
· Focus range: 3cm-∞
· Eye relief (mm): 25mm
· Adapter diameter (mm): 45/48
· Diotria adjustment: ± 5D

IR Illuminator:

· IR Type: VCSEL
· IR Power: 5W
· IR illumination level: 3 levels
· IR Distance: 350m
· IR Wavelength (nm): 850nm/940nm

Screen:

· Type: OLED
· Resolution(px): 1024*768
· Color mode: Color / Black&White

Photo / Video:

· Photo Resolution(px): 2592*1944
· Photo format: jpg
· Video Resolution(px): 1920*1080
· Video Format: MP4
· Storage(GB): TF card(128GB MAX)

Principal functions:

· Red dot: yes
· Self-activated recording: yes
· Automatic recording: yes
· Loop recording: yes
· Timestamp: yes
· Audio recording: yes
· Keystroke sound: yes
· Exposure compensation: yes

Interfaces:

· USB Type-C: yes
· HDMI Output: yes

Connections:

· WiFi: yes
· Compatible applications: PardVision

Power supply:

· Battery Type: 18650 Li-ion Battery
· Output voltage(V): 3.7
· Operating time(h,max): 8
· External power supply(V): USB Type-C

Environmental characteristics:

· Degree of protection: IP67
· Operating temperature(ºC): -25 ~ +40
· Recoil Power (J): 6000

Material:

· Housing: AL6061+Plastic
· Objective lenses: glass

Measures:

· Product Dimensions (L x W x H, mm): 96*71*99 (without eye cap) / 123*71*101 (with eye cap)
· Weight (with/without battery, g): 265g / 310g
