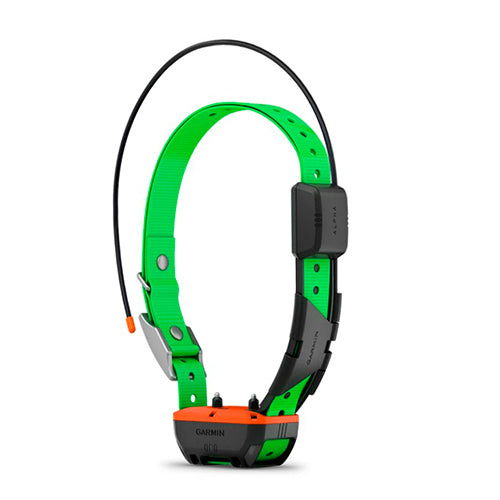

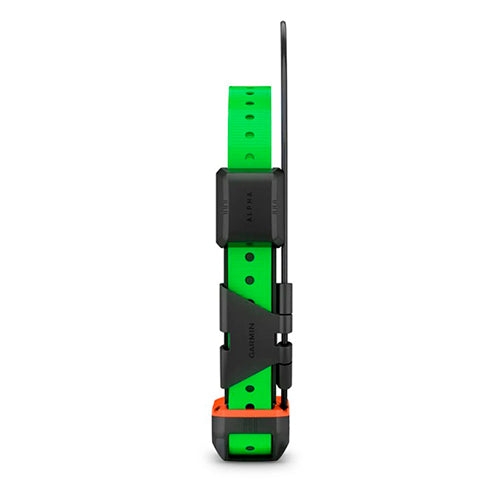

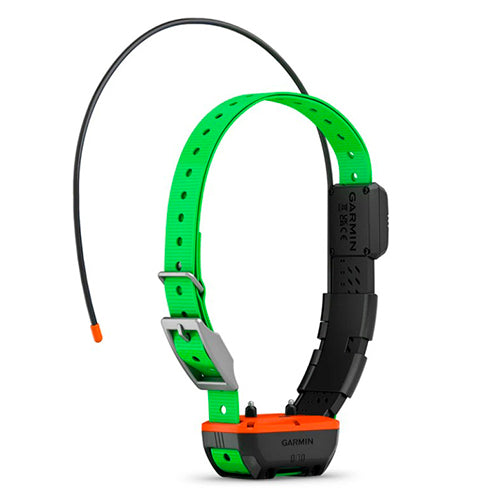

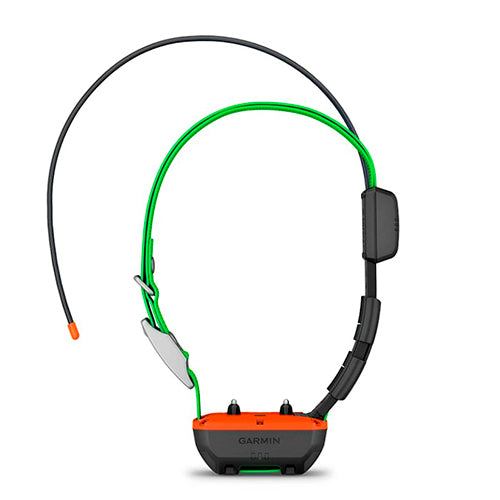

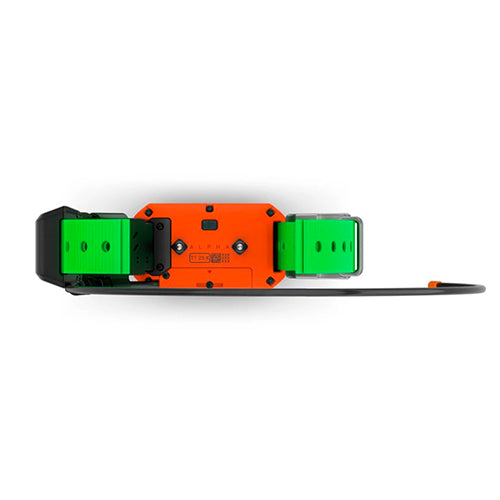

Features GARMIN ALPHA KT25 DOG COLLAR

GPS Dog Collar Alpha KT 25, compatible with Garmin Alpha 300i K.

The KT 25 is designed to provide reliable, accurate, and durable dog tracking and training performance, suitable for any breed and environment.

Dog tracking and training device.

The Garmin Alpha KT 25 collar combines high-sensitivity GPS + Galileo tracking with advanced training functions using stimulation, tone, and vibration. It provides location updates every 2.5 seconds and a range of up to 14.5 km when used with a compatible handheld device such as the Alpha 300i K (ref. SKU: 010-02806-55).

Its compact and rugged design with a universal fit is suitable for both large and small breeds and includes a flexible strap easily replaceable by the user. Dynamic tracking optimizes battery life based on the dog’s movement, while multicolor LED lights allow better visibility in low-light conditions, remotely controlled from the handheld device.

The KT 25 automatically receives software updates while charging when connected to a Wi-Fi network. Its replaceable battery offers up to 68 hours of operation in dynamic mode and up to 136 hours with the extended battery. With 1 ATM (10 m) water resistance, it is built to withstand the toughest outdoor environments.

Main features

GPS + Galileo tracking: high-sensitivity receiver with location updates from 2.5 s.
Range: up to 14.5 km with a compatible handheld device (sold separately).
Training: 18 levels of continuous or momentary stimulation, tone, and vibration.
Universal size: suitable for large and small breeds; collar compatibility up to 1″ (2.54 cm).
Dynamic tracking: optimizes battery life according to the dog’s movement.
Replaceable flexible strap: easy to change by the user.
Multicolor LED lights: better visibility in low light, remotely controlled from the handheld device.
Replaceable batteries: standard battery included and optional extended battery available.
Automatic updates: via Wi-Fi while charging.
Modes: sleep (Alpha) and rescue.
Frequency: VHF for transmission to the handheld device.

Technical specifications

Dimensions: 8.1 × 4.5 × 3.5 cm (3.2″ × 1.8″ × 1.4″)
Weight: 191.5 g (transmitter + antenna, without collar) / 262.7 g (with collar)
Water resistance: 1 ATM (10 m)
Battery: rechargeable lithium-ion, user-replaceable
Battery life with standard battery (included):
– Up to 68 h with dynamic update rate (default mode)
– Up to 25 h with updates every 2.5 s
– Up to 84 h with updates every 2 min
Battery life with extended battery (optional):
– Up to 136 h with dynamic update rate
– Up to 50 h with updates every 2.5 s
– Up to 168 h with updates every 2 min
Interface: USB-C
GNSS: GPS and Galileo (high-sensitivity receiver)
Device frequency: VHF
Location lights: multicolor LEDs
Collar compatibility: up to 1″ (2.54 cm)

Tracking and training functions

Tracking range: up to 14.5 km with compatible handheld devices
Training modes: stimulation, tone, and vibration
Sleep mode: yes (Alpha products only)
Rescue mode: yes
Dynamic tracking: optimizes battery life based on the dog’s movement

Connectivity and updates

Wi-Fi: automatic software updates while charging and connected to the network
USB-C: high-speed charging and data transfer

Compatibility

Pairing with handheld devices: compatible with Garmin dog tracking handhelds, such as the Alpha series (e.g., Garmin Alpha 300i K Handheld Radio Locator – ref. SKU: 010-02806-55; sold separately).

Package contents

Alpha KT 25 dog collar with rechargeable lithium-ion battery
1″ green collar strap
Charging clip
USB cable
Short and long metal contact points with key
Documentation

Important notes

A compatible Garmin handheld device is required for tracking and training (sold separately).
The use of VHF frequencies may be regulated or restricted depending on jurisdiction; users must comply with applicable laws.
Vibration/tone functions are not available in the U.S. and may vary by region.

Available at Carbin Store, your specialist retailer for Garmin and canine tracking and training solutions. Check out our bundles and combinations for the best price.

• Material packaging

  Cartón

The Alpha KT 25 operates on open frequencies, so it has no band restrictions. It maintains the same tracking and training functions as the TT 25 but is designed to be compatible with the Alpha 300i K system.

The KT 25 offers a maximum range of 14.5 km when used with a Garmin Alpha 300i K handheld device. This distance may vary depending on terrain and environmental conditions.

Yes. It is water-resistant up to 1 ATM (10 meters), making it ideal for hunting or working dogs that operate in wet areas, rivers, or heavy rain.

The collar is compatible with the Garmin Alpha 300i K (SKU: 010-02806-55) and other Alpha-series devices operating on free frequencies. It is not compatible with the Alpha 300i models or the Astro and Delta series.
