Features NOCPIX DOME MT THERMAL CAMERA

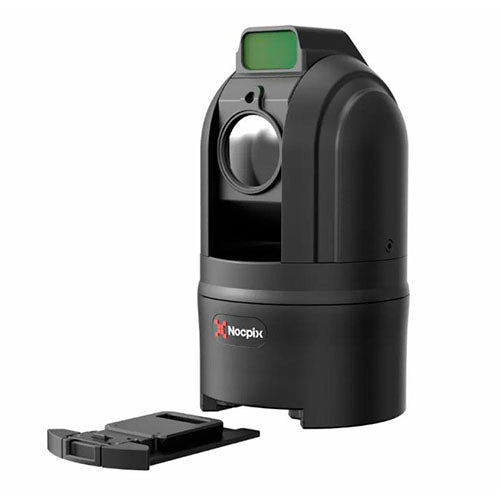

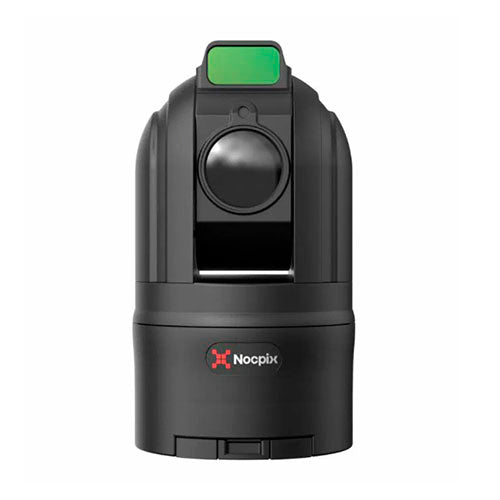

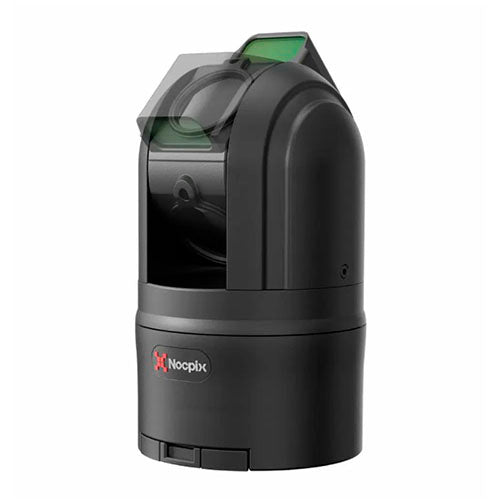

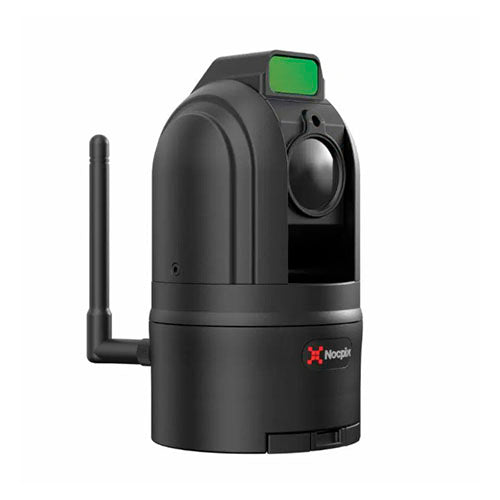

Nocpix DOME MT Thermal Camera with Artificial Intelligence and Automatic Tracking

The Nocpix DOME MT Thermal Camera represents a new generation of intelligent thermal imaging systems designed for locating, detecting and automatically tracking game during hunting. Equipped with advanced artificial intelligence, 360° panoramic vision and 2-axis stabilisation, it delivers a completely different observation experience compared to conventional thermal devices.

Thanks to its powerful processor with 2T computing power and the YOLO V5 recognition algorithm, the DOME MT can automatically detect, identify and track moving animals, making field observation, target location and hunting control much easier.

Artificial intelligence for game detection and tracking

The integrated AI technology has been trained using large data sets to automatically recognise targets. The system can identify animals, mark their position with tracking boxes and follow their movement continuously in real time.

• High-performance processor with 2T computing power.
• YOLO V5 recognition technology.
• Automatic target detection.
• Intelligent real-time tracking.
• Visual target marking with tracking boxes.
• Reduced effort during search and observation.

360° panoramic thermal vision

The DOME MT has been designed to provide full terrain coverage thanks to its 360° horizontal rotation and 90° vertical tilt. This configuration minimises blind spots and allows continuous monitoring of large areas.

• 360° panoramic rotation.
• 90° vertical tilt.
• Continuous animal tracking.
• Reduced blind spots.
• Greater terrain coverage.
• Ideal for hunting, observation and surveillance.

Advanced 2-axis stabilisation

The system incorporates 2-axis stabilisation that automatically compensates for vibrations caused by terrain, vehicle movement or external factors. This ensures clearer, sharper and more stable thermal images.

• Automatic vibration correction.
• Enhanced image stability.
• More accurate tracking.
• Optimised for use while moving.
• Improved observation quality.

Real-time transmission and advanced connectivity

The camera supports both WiFi and wired connections, adapting to different hunting and observation scenarios. Live image transmission is compatible with the official Nocpix App for smartphones, tablets and other mobile devices.

• Integrated WiFi connectivity.
• Wired connection for maximum stability.
• Real-time image transmission.
• Compatible with the Nocpix App.
• Use on smartphones and tablets.
• Quick and simple configuration.

High-sensitivity thermal sensor

The Nocpix DOME MT features a 640x512 px thermal sensor with NETD ≤25 mK, capable of detecting minimal temperature differences and generating detailed thermal images even in demanding environmental conditions.

• 640x512 px thermal sensor.
• 12 μm pixel size.
• NETD ≤25 mK.
• 50 Hz refresh rate.
• Detection range up to 1,300 m.
• Rangefinder up to 1,200 m.

Technical specifications

• Brand: Nocpix.
• Model: DOME MT.
• Vision type: Thermal.
• Activity: Hunting.
• Sensor: 640×512 px.
• Pixel size: 12 μm.
• NETD: ≤25 mK.
• Refresh rate: 50 Hz.
• Objective lens: 25 mm.
• Magnification: 1x / 2x / 4x.
• Detection range: 1,300 m.
• Rangefinder: 1,200 m.
• Colour: Black.
• Field of view: 17.5° × 14°.
• Battery life: Up to 7 hours.
• External power supply: 12V DC cable.
• Protection rating: IP56.
• Weight: 889 g.
• Battery type: External.
• Operating temperature: -20°C to +60°C.
• Dimensions: Φ80.2 × 146.6 mm.
• Connectivity: WiFi and cable.

• Weight

  889 g

• Viewing range

  1300 m

• Water resistance

  IP56

The Nocpix DOME MT Thermal Camera features advanced artificial intelligence based on the YOLO V5 algorithm and 2T of computing power. This technology allows it to automatically detect, identify and track moving animals, highlighting targets with tracking boxes to simplify observation and reduce user effort.

The Nocpix DOME MT Thermal Camera features 360° horizontal rotation and up to 90° vertical tilt. This panoramic coverage minimises blind spots and allows continuous monitoring and tracking of animals across large areas.

Yes. The Nocpix DOME MT Thermal Camera supports real-time thermal image transmission via WiFi or wired connection. It is compatible with the official Nocpix App for smartphones, tablets and other mobile devices.

The Nocpix DOME MT Thermal Camera features a 640×512 px thermal sensor with NETD ≤25 mK capable of detecting targets at distances of up to 1,300 metres. It also includes a rangefinder with a measuring range of up to 1,200 metres.
