Features SWAROVSKI DS 5-25x52 P GEN II RIFLESCOPE

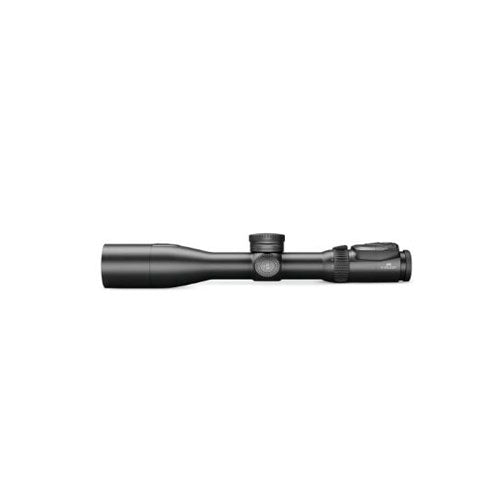

Swarovski DS 5-25x52 P GEN II Riflescope

Great novelty presented this March 2021 with an improved design.

The Battery Turret is thinner than its predecessor, more ergonomic controls with a greater space between the controls and the magnification adjustment ring, this makes the scope even easier to handle when aiming. You can find it with rings or with a rail.

This Swarovski Ds hunting scope combines the quality of the conventional optical system with the advantages of a digital scope, creating an impressive set. Calculate the correct point of impact with the push of a button, taking into account distance, air pressure, temperature, angle, magnification and personal ballistics data. It allows you to customize the hunting data on the high resolution screen using the dS Configurator application; for example, you can view six different digital grids. You can also select which particular parameters (eg wind speed, bullet speed, power of impact) you want to see on the screen, along with their position.

Items such as resistance marks and the new alignment indicator can be turned on and off. The illumination of the reticle also has new features. To ensure the best possible visibility during use, the dS automatically selects between three brightness levels based on ambient brightness.

Technical specifications

· Frame type: ring or rail

· Reticle: 4A-i

· Magnification: 5-25x

· Adapter ring diameter (mm): 48-52 mm

???????· Exit pupil diameter (mm): 9.6-2.1 mm

???????· Eyepiece Distance (mm) (Augenabstand): 95mm

???????· Field of view (m / 100m): 7.3-1.5m / 100m

???????· Field of view (degrees): 4.2-0.84 °

???????· F?????????????????????ield of view, apparent (degrees): 21.5 °

???????· Diopter compensation (dpt): -3 to +2 dpt

???????· Light transmission (%): 83%

???????· Twilight factor according to ISO 14132-1: 14. 1-36.0

???????· Parallax correction (m): 50-∞ m

???????· Impact point correction per click: 0.25 / 7

???????· Range max. elevation adjustment / wind resistance: 43/25 / 1.2 / 0.7

???????· Measurement range: 30-1375 m

???????· Measurement accuracy: 1m

???????· Angle measurement: 60º

???????· Maximum impact point correction: 1024 m

???????· Lens filter thread: M 63x0.75

???????· Operating time approx. (h): 500x

???????· Screen: LCoS monochrome

???????· Help program (application): dS Configurator

???????· Operating System: iOS from Version 8.1, Android from Version 4.4 KitKat

Dimensions

???????· Length approx .: 403 mm

???????· Weight-oz-g: 1090 g 1115 g

???????· Central tube diameter: 40 mm

Environment and conditions

???????· Operating temperature: -10 to +55 ° C

???????· S???????torage temperature: -30 to +70 ° C

???????· Watertightness: 13 ft / 4 m water depth (filled with inert gas)

The Swarovski DS 5-25x52 P hunting scope can be found with rings or with rail

???????· Swarovski DS 5-25x52 P GEN II Riflescope with rings. 40mm middle tube + modified 4A-i reticle

???????· Swarovski DS 5-25x52 P GEN II Riflescope with SR rail + modified 4A-i reticle
