Features HIKMICRO HIKTAC THERMAL VISION SCOPE

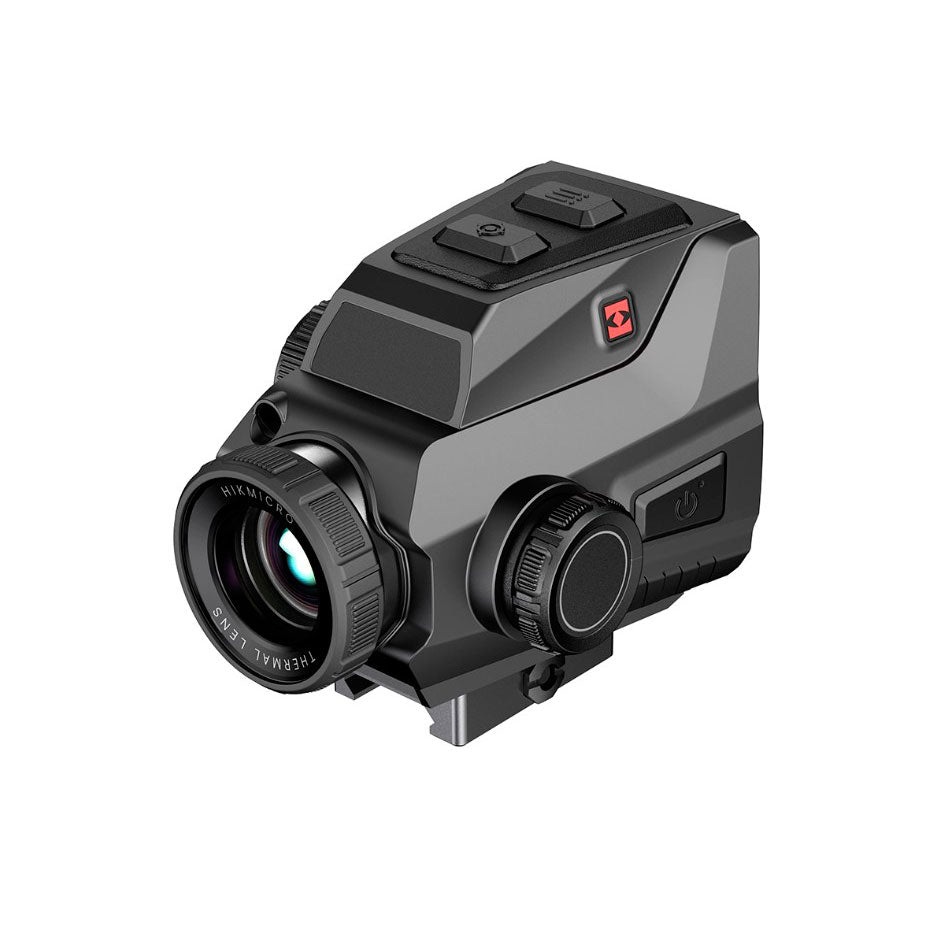

HIKMICRO HIKTac TC19 and TC19L thermal scope

The HIKMICRO HIKTac is a compact thermal imager developed specifically for activities such as airsoft and crossbow shooting . It combines a 256 × 192 pixel thermal sensor with a high sensitivity (NETD below 18 mK) and a large 3.1-inch AMOLED display , offering a wide and immersive viewing experience.

Its detection range reaches up to 900 meters and it has advanced functions such as ballistic calculation, distance measurement, video recording, image capture, PIP and different zeroing profiles.

The range allows you to choose between the HIKTac TC19 and the HIKTac TC19L version with integrated laser rangefinder , capable of measuring distances up to 1,000 meters.

Thermal sensor 256 × 192 with NETD less than 18 mK

The HIKMICRO HIKTac is equipped with an uncooled VOx sensor with a resolution of 256 × 192 pixels , a pixel pitch of 12 μm and a refresh rate of 50 Hz.

One of its strengths is its thermal sensitivity (NETD < 18 mK) . This high sensitivity allows it to distinguish small temperature differences and improve the thermal definition of objects and scenes, especially when there is little ambient thermal contrast.

Large 3.1-inch AMOLED display

HIKMICRO opts for a 3.1-inch AMOLED screen with a resolution of 600 × 450 pixels in the HIKTac.

Its large format provides a comfortable and immersive viewing experience, facilitating both the identification of the elements of the thermal image and monitoring during use.

Detection range up to 900 meters

The combination of the thermal sensor and its 19mm F1.0 lens provides an indicated detection range of up to 900 meters .

The viewfinder offers a magnification range of 1.2x to 9.6x , with a minimum focusing distance of 1 meter and a field of view of 9.2° × 6.9°.

HIKTac TC19L with 1,000 meter laser rangefinder

The HIKMICRO HIKTac TC19L version adds an integrated laser rangefinder to measure the distance to the target.

The rangefinder uses a Class 1 laser with a wavelength of 905 nm and provides a maximum measuring range of 1,000 meters , with a stated accuracy of ±1 meter and a minimum measuring distance of 10 meters.

This function allows you to know the distance directly from the device and complements the possibilities offered by the integrated ballistic calculation.

Integrated ballistic calculation

The HIKTac incorporates ballistic calculation , a particularly interesting function when you need to take into account the distance to the target.

In the TC19L version, the combination of ballistic calculation with the integrated laser rangefinder allows thermal information and distance measurement to be available in the same device.

Image Pro 3.0 and Zoom Pro

HIKMICRO equips the HIKTac with different processing technologies designed to improve the display of the thermal image.

Image Pro 3.0 works on image processing to improve the perception of details, while Zoom Pro is designed to optimize the display when using digital zoom.

The device also incorporates HSIS, HIKMICRO&#39;s shutterless imaging system , in addition to Sync Pro technology.

Four thermal blades

The user can adapt the image representation to their preferences and usage conditions using four palettes:

• Bright black.
• Bright white.
• Bright red.
• IronBow.

It also features cool or warm tone adjustment, brightness and contrast to further customize the display.

Video recording and photo capture

The HIKMICRO HIKTac allows you to record videos and take image captures directly from the device.

It has 4 GB of built-in EMMC storage , plus a local album to view stored images.

PIP function and access point

Among its additional functions is the PIP (Picture-in-Picture) mode, which allows you to have an enlarged area of the image while simultaneously maintaining an overview of the scene.

It also incorporates an access point function to expand its connectivity possibilities.

5 reset profiles

The system incorporates 5 zeroing profiles , allowing different configurations to be saved depending on the equipment or the user&#39;s needs.

It also features image freeze reset , simplifying the setup process.

Replaceable 18650 battery

The HIKTac uses a rechargeable and replaceable 18650 battery , a particularly practical solution because it allows the battery to be replaced when necessary.

The stated battery life is approximately 3.5 hours . It also features a 5V DC / 2A USB Type-C interface.

Compact design and IP67 protection

With dimensions of 106.9 × 94.8 × 86.7 mm and an indicated weight of approximately 290 grams without battery , the HIKTac offers a compact configuration.

It also features IP67 protection and an operating temperature range of -30 °C to 45 °C.

Killflash lens protector included

The scope incorporates a Killflash lens protector , which is especially interesting in a device designed for activities like airsoft.

The Killflash is part of the contents supplied with the viewfinder and helps to protect the front area of the lens.

Features of the HIKMICRO HIKTac

• Brand: HIKMICRO.
• Model: HIKTac.
• Versions: TC19 and TC19L with rangefinder.
• Sensor: Uncooled VOx.
• Thermal resolution: 256 × 192 pixels.
• Pixel pitch: 12 μm.
• NETD: < 18 mK.
• Frequency: 50 Hz.
• Lens: 19 mm F1.0.
• Focus: via ring.
• Detection range: up to 900 m.
• Magnification: 1.2x – 9.6x.
• Minimum focus: 1 m.
• Field of view: 9.2° × 6.9°.
• Screen: 3.1" AMOLED
• Screen resolution: 600 × 450.
• Palettes: Vivid Black, Vivid White, Vivid Red and IronBow.
• Processing: Image Pro 3.0 and Zoom Pro.
• System: HSIS and Sync Pro.
• Recording: video and photographs.
• Storage: 4GB EMMC.
• Features: PIP, hotspot, and local album.
• Zeroing profiles: 5.
• Ballistic calculation: yes.
• Battery: 1 × 18650 rechargeable and replaceable.
• Autonomy: up to 3.5 hours.
• Connection: USB Type-C.
• Protection: IP67.
• Dimensions: 106.9 × 94.8 × 86.7 mm.
• Weight: 290 g without battery.
• Operating temperature: -30 °C to 45 °C.

Features of the HIKTac TC19L rangefinder

• Rangefinder: integrated laser.
• Maximum range: 1,000 m.
• Minimum distance: 10 m.
• Accuracy: ±1 m.
• Wavelength: 905 nm.
• Class: Class 1 laser.

Contents of the HIKMICRO HIKTac pack

• HIKMICRO HIKTac thermal imager.
• O-ring.
• Killflash lens protector.
• Dust cloth.
• USB Type-C cable.
• Quick Start Guide.

Who do we recommend the HIKMICRO HIKTac for?

The HIKMICRO HIKTac is designed especially for airsoft and crossbow shooting users who are looking for a compact thermal device with an especially large screen and advanced imaging functions.

The TC19 offers the main thermal functions, while the HIKTac TC19L is especially interesting for those who also need to know the distance using an integrated laser rangefinder.

HIKMICRO HIKTac at Carbin Store

Find the HIKMICRO HIKTac thermal imager at Carbin Store and choose the right configuration between the TC19 and the TC19L with a laser rangefinder up to 1,000 meters .

A compact thermal solution with a 256 × 192 sensor, NETD less than 18 mK, large 3.1-inch AMOLED display and a detection range of up to 900 meters.
