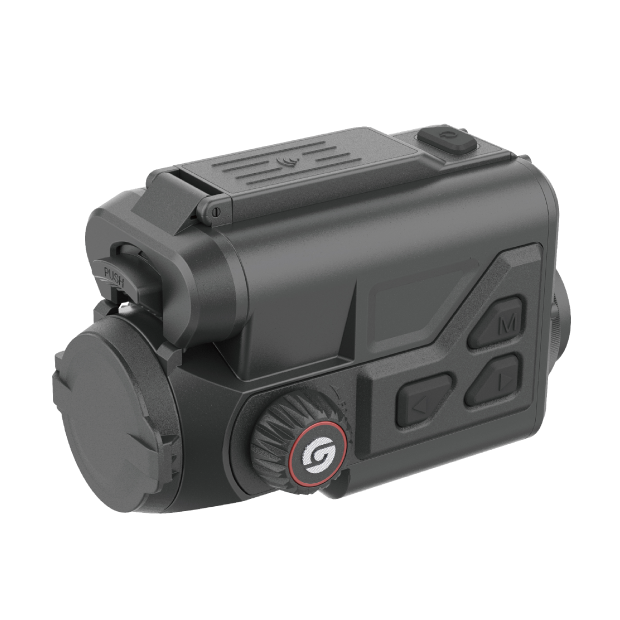

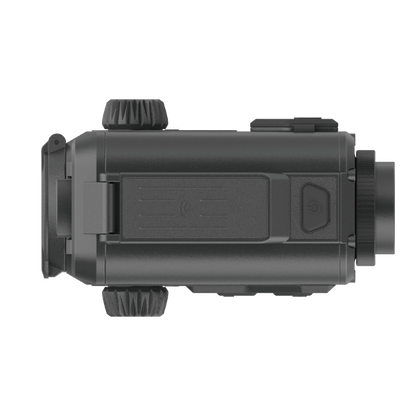

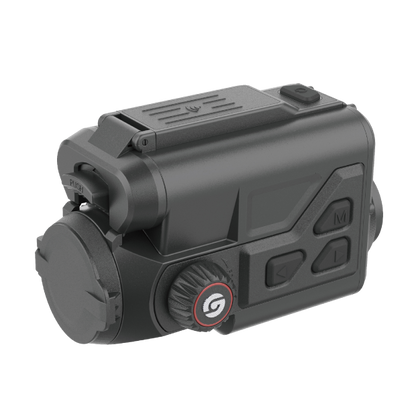

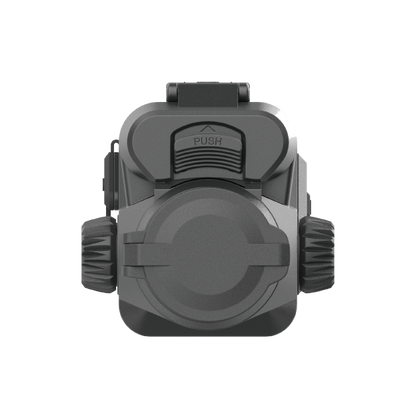

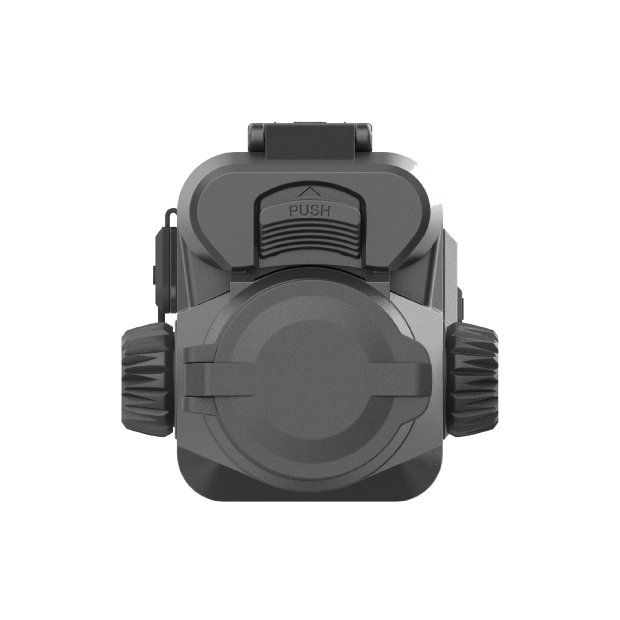

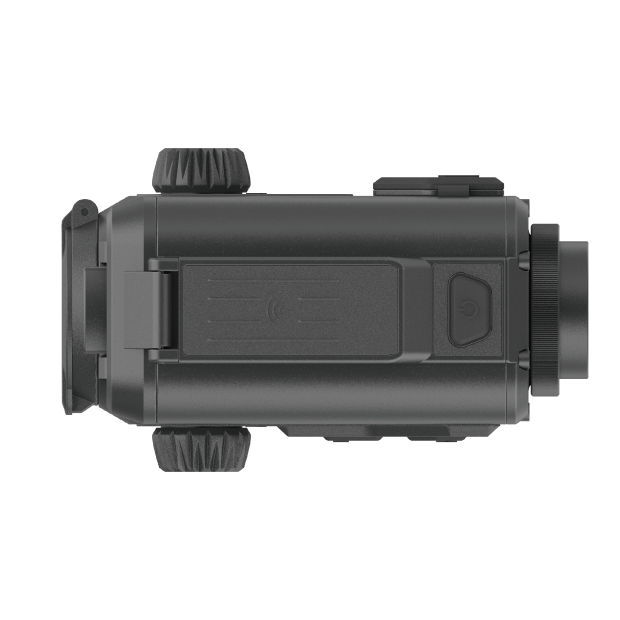

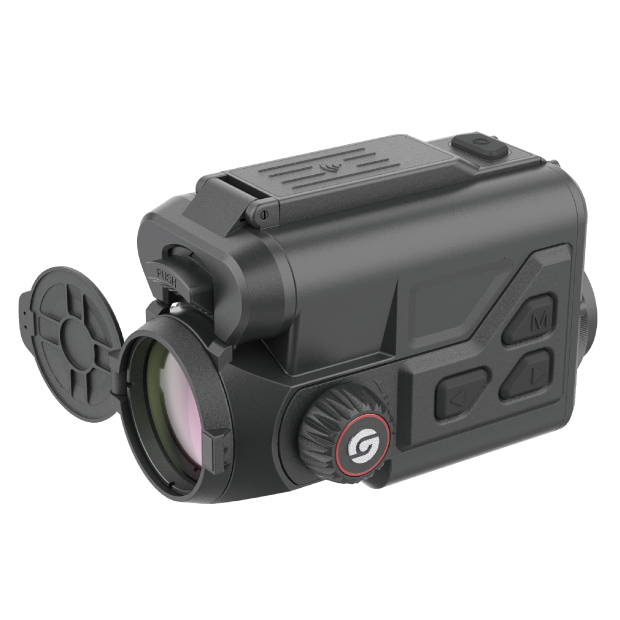

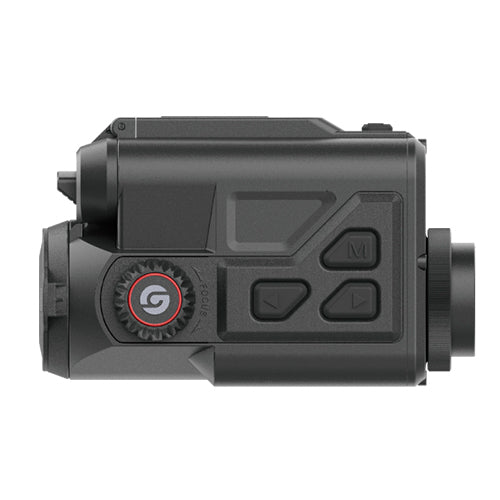

Features GUIDE TB THERMAL CLIP-ON

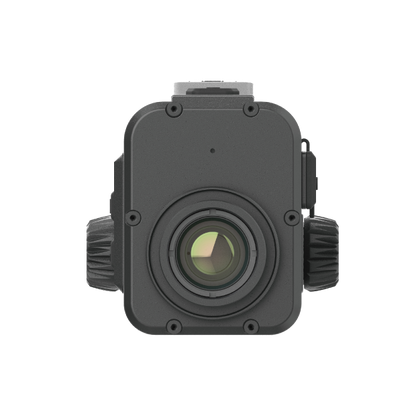

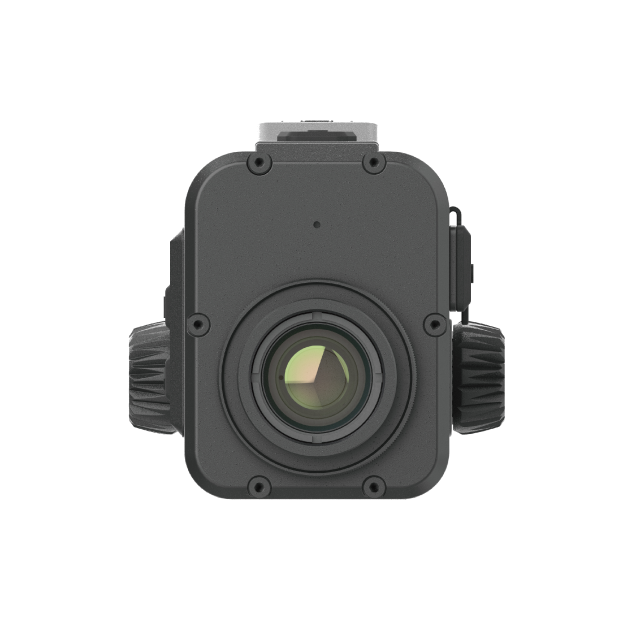

Guide TB thermal clip-on available in 3 versions, TB420, TB430 and TB630

The Guide TB thermal clip-on offers a perfect balance between precision, portability and thermal performance. The TB Series has been designed for hunters looking for a lightweight, compact and reliable device, ideal for night hunting and low-visibility situations.

The TB Series stands out for its magnesium alloy construction, which reduces weight by more than 20% compared to similar products while maintaining high precision and robustness. Its compact design improves portability and ease of installation as a clip-on, while the Full-HD AMOLED display provides a comfortable viewing experience with vivid colors and a wide field of view. Thanks to its high-sensitivity 12 μm infrared detector with a NETD below 25 mK, the TB Series can distinguish even the slightest thermal differences, delivering clear and detailed images. All this is complemented by long battery life, replaceable standard 18650 batteries and IP68 certification for reliable use in demanding conditions.

Main features and technical specifications by version
Guide TB420 – Ref. GUTB420

The Guide TB420 is the most compact and lightweight option in the series, ideal for users looking for a manageable and efficient thermal clip-on for medium distances, while maintaining excellent image quality and long operating time.

Uncooled VOx thermal sensor with 400×300 resolution at 12 μm
NETD thermal sensitivity of 25 mK
25 mm lens with F1.0 aperture
Detection range up to 1300 meters
0.39-inch AMOLED display with 1920×1080 resolution
Multiple color palettes for environmental adaptation
Photo and video recording with audio
32 GB internal memory
WiFi 2.4G and 5G and Bluetooth connectivity
Two replaceable 18650 batteries with up to 12 hours of operating time
IP68 certification and impact resistance up to 1000G
Compact design with an approximate weight of 420 g

Guide TB430 – Ref. GUTB430

The Guide TB430 offers a longer detection range thanks to its 35 mm lens, making it a balanced option for hunters who need enhanced detection performance without sacrificing portability.

Uncooled VOx thermal sensor with 400×300 resolution at 12 μm
NETD thermal sensitivity of 25 mK
35 mm lens with F1.0 aperture
Detection range up to 1800 meters
0.39-inch AMOLED display with 1920×1080 resolution
Multiple color palettes for environmental adaptation
Photo and video recording with audio
32 GB internal memory
WiFi 2.4G and 5G and Bluetooth connectivity
Two replaceable 18650 batteries with up to 12 hours of operating time
IP68 certification and impact resistance up to 1000G
Compact design with an approximate weight of 425 g

Guide TB630 – Ref. GUTB630

The Guide TB630 is the most advanced version of the TB Series, featuring a higher-resolution sensor and superior thermal sensitivity, designed for users who demand the highest level of detail and performance in thermal observation.

Uncooled VOx thermal sensor with 640×512 resolution at 12 μm
NETD thermal sensitivity of 20 mK
35 mm lens with F1.0 aperture
Detection range up to 1800 meters
0.39-inch AMOLED display with 1920×1080 resolution
Multiple color palettes for environmental adaptation
Photo and video recording with audio
64 GB internal memory
WiFi 2.4G and 5G and Bluetooth connectivity
Two replaceable 18650 batteries with up to 10 hours of operating time
IP68 certification and impact resistance up to 1000G
Compact design with an approximate weight of 440 g

Legal requirements

To purchase this thermal clip-on, the following legal requirements must be met:
· A valid type D firearms license.
· Full name and ID number must be provided during the purchase process.
· The corresponding administrative permit or special authorization when using the device mounted on a firearm.

These requirements are mandatory and will be verified before order processing.

Reliable and lightweight thermal technology for modern night hunting

• Viewing range

  1300 m - 1800 m

The main differences lie in the sensor resolution, the lens and the detection range. The TB420 and TB430 feature a 400×300 VOx sensor with 25 and 35 mm lenses, while the TB630 uses a 640×512 VOx sensor with higher thermal sensitivity and greater image detail.

Yes. The Guide TB is designed to be used as a thermal clip-on mounted in front of a daytime scope without the need to re-zero, maintaining the rifle’s accuracy and enabling an easy transition between daytime and thermal viewing.

Yes. Thanks to its high-sensitivity VOx thermal sensors, fast lenses and Full HD AMOLED display, the Guide TB provides clear and accurate detection even in total darkness, fog, humidity or dense vegetation.

The Guide TB uses two replaceable standard 18650 batteries, providing up to 12 hours of operating time on the TB420 and TB430 models and up to 10 hours on the TB630, ideal for long night hunting sessions.
