Features GUIDE TE210MS APEX VISION THERMAL MONOCULAR

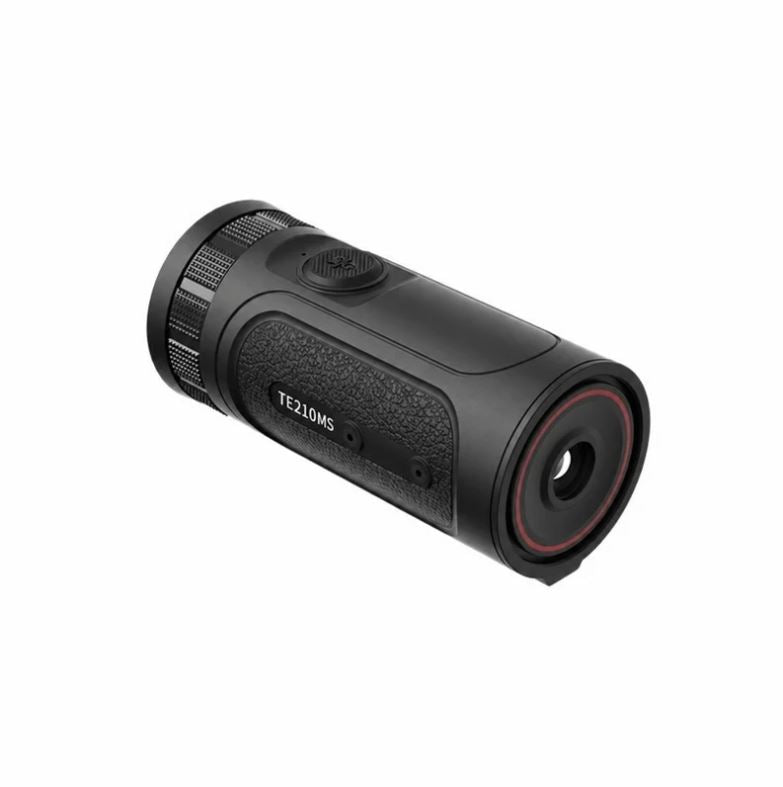

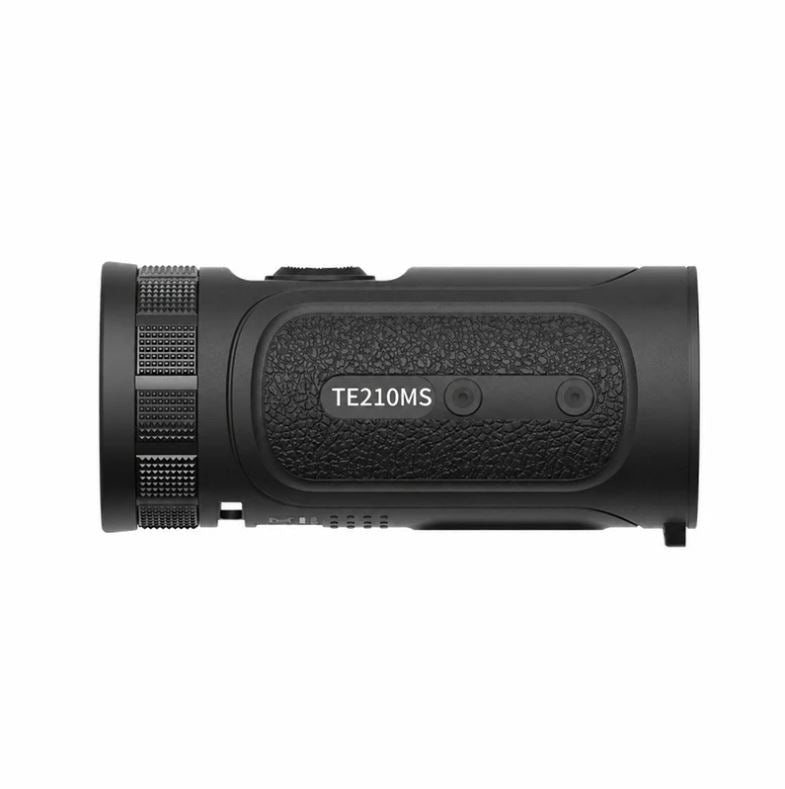

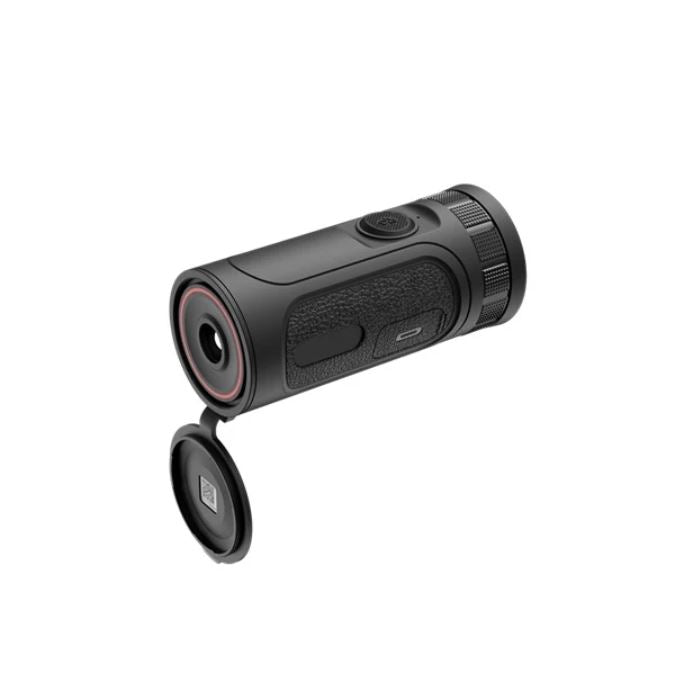

GUIDE TE210MS: Compact thermal monocular with ApexVision S1

The GUIDE TE210MS is a next-generation compact thermal monocular that combines a weight of only 205 grams with the ApexVision S1 imaging architecture. It is designed to quickly locate animals and heat sources while maintaining a small enough form to comfortably fit in a pocket.

Its VOx thermal sensor with 256 × 192 pixels , 12 μm pixel pitch and NETD sensitivity ≤15 mK allows it to distinguish small temperature differences, providing a detailed image even when there is little thermal contrast, humidity or fog.

The 10mm F1.0 lens provides a wide field of view of approximately 23 x 23 meters at 100 meters and a detection range of up to 500 meters . All of this is displayed on a unique 1.43-inch circular AMOLED touchscreen , eliminating the need to keep your eye glued to a conventional eyepiece.

Main features of the GUIDE TE210MS

• ApexVision S1: Advanced image architecture to improve detail, contrast, and smoothness.
• VOx 256 × 192 sensor: uncooled thermal detector with 12 μm pixel.
• NETD ≤15 mK: high sensitivity to detect small thermal differences.
• 50 Hz frequency: provides a smooth display of movement.
• 10mm F1.0 lens: wide field of view for quickly exploring large areas.
• Detection up to 500 m: allows you to locate heat sources at a considerable distance.
• AMOLED touchscreen: 1.43" circular panel with a resolution of 466 × 466 pixels.
• 64 GB of memory: internal storage for photos and videos.
• Audio recording: allows you to also save the sound along with the video.
• Wi-Fi 2.4/5 GHz and Bluetooth: extensive wireless connectivity.
• TargetIR: compatible with the GUIDE mobile app.
• Up to 6 hours of autonomy: integrated rechargeable battery.
• 20W fast charging: approximately one hour of autonomy with 10 minutes of charging.
• IP67 protection: prepared for dust, rain and demanding conditions.
• Only 205g: ultra-compact design of 49 × 49 × 111 mm.

ApexVision S1: New thermal imaging architecture

The GUIDE TE210MS incorporates the ApexVision S1 architecture, consisting of the ApexCore S1 detector, the Nexus 1.0 platform, and the Hyper-Light 2.0 processing algorithm.

The combination of these elements is aimed at improving contrast, reducing noise, and providing more detailed and fluid thermal images, facilitating the identification of heat sources and their surroundings.

Thermal sensor of 256 × 192 and NETD ≤15 mK

The heart of the TE210MS is an uncooled 256 × 192 pixel VOx thermal detector with a pixel pitch of 12 μm .

Its thermal sensitivity (NETD ≤15 mK) allows it to detect very small temperature differences. This feature is especially important when the animal and the environment have similar temperatures or when atmospheric conditions reduce thermal contrast.

The 50 Hz image frequency also allows for smooth visualization of movement during the scan.

10mm lens and wide field of view

The 10mm F1.0 lens provides a field of view of 13.1° × 13.1° , equivalent to approximately 23 × 23 meters at a distance of 100 meters .

This wide field of view facilitates the scanning of large areas and the rapid location of thermal sources, while the detection range reaches up to 500 meters .

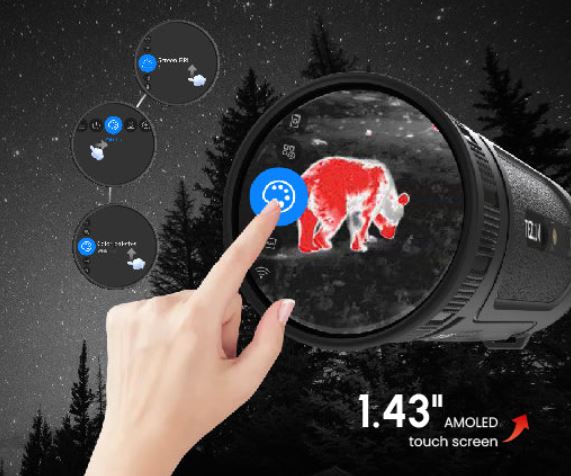

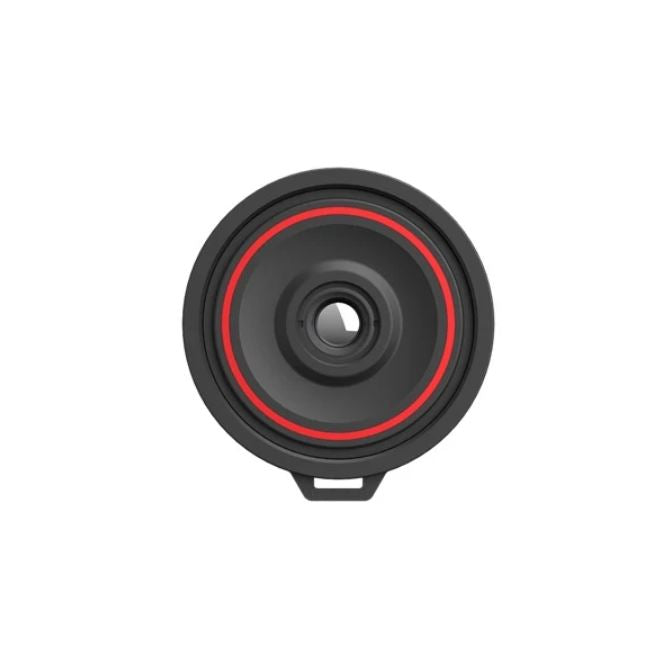

1.43-inch AMOLED touchscreen

One of the most distinctive features of the GUIDE TE210MS is its 1.43-inch circular AMOLED touchscreen with a resolution of 466 × 466 pixels .

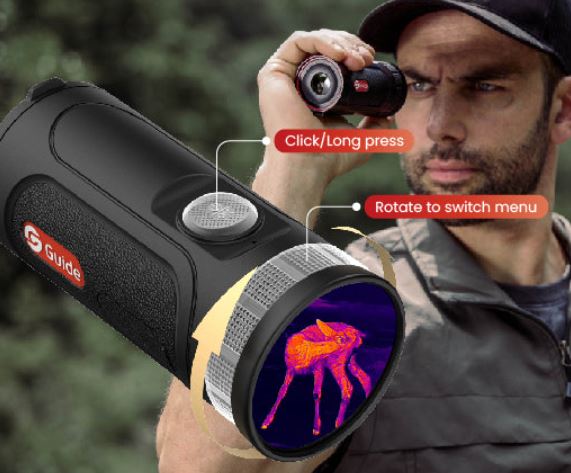

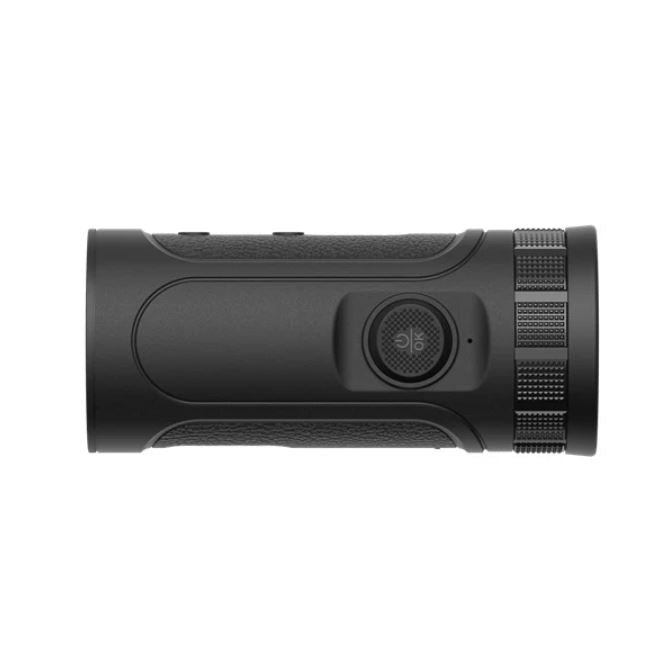

Instead of requiring the user to continuously observe through a conventional eyepiece, the thermal image can be viewed directly on the screen. The device also features a central button and control ring , making it easy to operate even while wearing gloves.

Seven color palettes

The TE210MS allows the thermal image display to be adapted to the user's conditions and preferences using seven display palettes : hot white, hot black, hot red, green, iron red, hot blue, and sepia.

Photos, video, audio and 64 GB of memory

The GUIDE TE210MS allows you to capture photos and record video with sound directly from the device.

Its 64 GB of internal memory offers a high storage capacity to preserve images and recordings from numerous days without constantly depending on an external device.

Dual-band Wi-Fi, Bluetooth and TargetIR

Connectivity is another of its highlights. It includes dual-band Wi-Fi (2.4 and 5 GHz), Bluetooth, and a USB-C connection .

The TargetIR application allows you to view the live image from a mobile device, manage files, and perform compatible monocular update and management functions.

Up to 6 hours of battery life and 20W fast charging

Its integrated rechargeable battery provides up to 6 hours of autonomy, allowing for long observation sessions without increasing the size of the equipment with an external interchangeable battery.

The 20W fast charging system allows you to recover approximately one hour of operation with just 10 minutes of charging , a particularly practical advantage when you have little time before returning to the field.

205 grams: a truly compact thermal pack

With dimensions of just 49 × 49 × 111 mm and a weight of 205 grams , the GUIDE TE210MS is designed to take up very little space.

Its small size makes it easy to carry in a pocket or add to your regular gear without adding the bulk and weight of larger thermal devices.

IP67 protection for year-round use

The monocular features IP67 protection and is designed to operate between -20°C and +50°C . This allows it to be used in rain, dust, and a wide range of temperatures throughout the year.

Technical specifications of the GUIDE TE210MS

What does the GUIDE TE210MS include?

• GUIDE TE210MS thermal monocular.
• Carrying case.

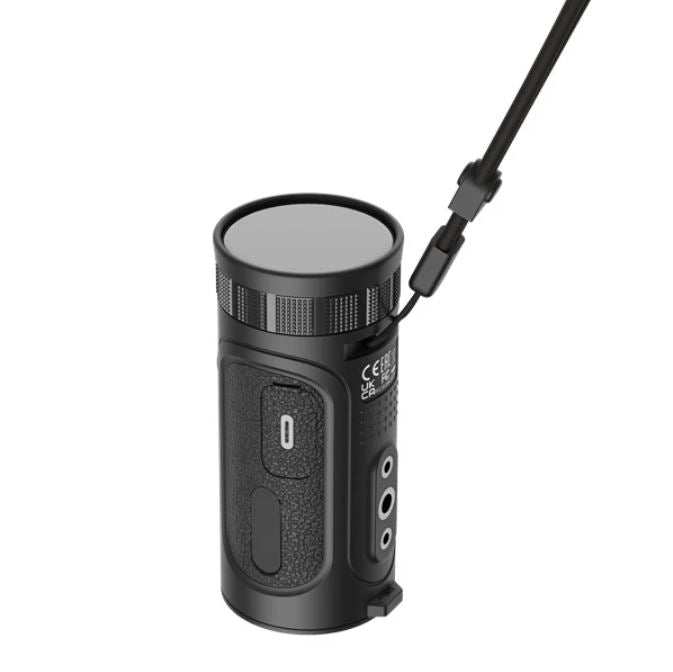

• Wrist strap.
• USB-A to USB-C charging cable.
• Cleaning cloth.
• Quick Start Guide.
• Warranty card.

Who is the GUIDE TE210MS designed for?

The GUIDE TE210MS is especially appealing to those who prioritize portability, fast detection, and a wide field of view . Its combination of a 10mm lens, high-sensitivity sensor, and weight of only 205g allows for rapid terrain exploration without the burden of a larger thermal monocular.

Buy the GUIDE TE210MS thermal monocular at Carbin

The GUIDE TE210MS ApexVision combines a high-sensitivity thermal sensor, a touchscreen AMOLED display, multimedia recording, and advanced connectivity in a body weighing only 205 grams .

A particularly compact solution for those looking to quickly locate heat sources and always have the device at hand , with detection up to 500 meters, 64 GB of storage and up to 6 hours of battery life.
